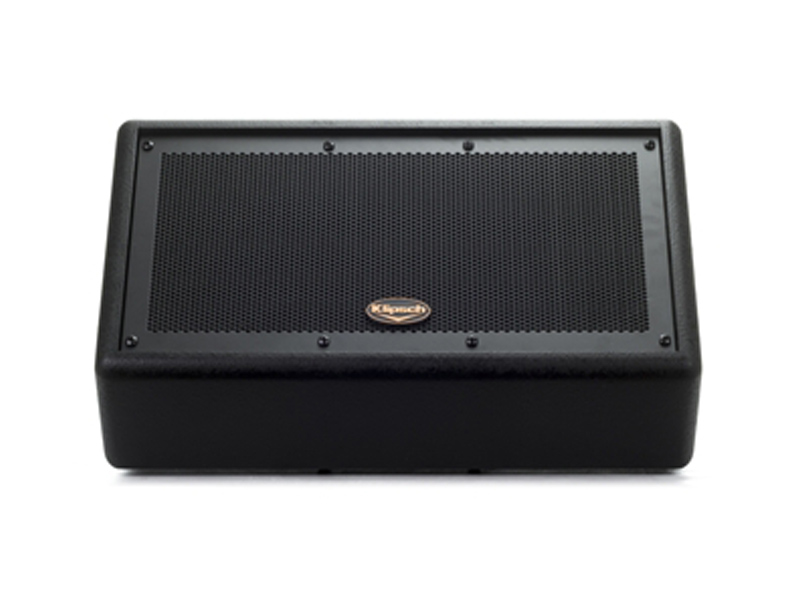

Klipsch 8" Compact Commercial Monitor 65 or 45 degree angle KI172BSMAII KI172BII

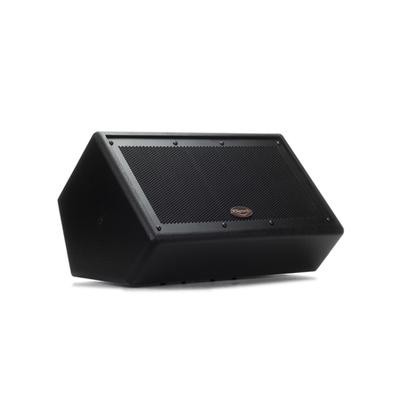

The KI-172-SMA-II is a compact, two-way, high performance loudspeaker with sides slanted at 65° and 45°. Designed to be installed where placement at an angle is required and space is limited, the KI-172-SMA-II is perfect for wall, ceiling or under-balcony mounting in theaters, churches, schools and clubs, or for slanted floor or shelf monitor use near altars and podiums, or in board and meeting rooms.
The 3/4” MDF enclosure uses dado “lock-joint” and rabbet construction on CNC-fabricated panels to ensure resonance-free response and long-term reliability. The internal high-current passive crossover features the proprietary high-power thermal overload KLIP- circuit, which limits potential damage to the high-frequency driver. Mounting capabilities include top and bottom attachments for the optional SB-102 "U"-shaped bracket.
Specification | |
---|---|
FREQUENCY RESPONSE: | 74Hz-17kHz +/- 3dB -10dB @ 48Hz |
SENSITIVITY: | 95dB |
POWER HANDLING: | 200 watts (31V) (800 watts peak) |
CALCULATED MAX CONTINUOUS OUTPUT: | 115dB (121dB peak) |
NOMINAL IMPEDANCE: | 8 ohms, minimum 4.7 ohms @184Hz |

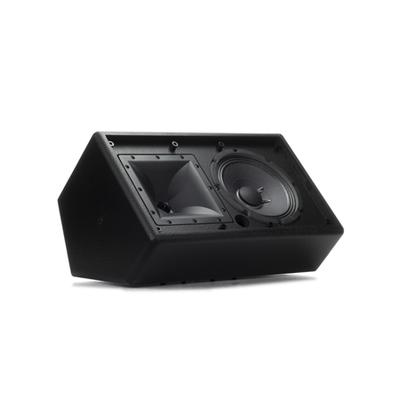

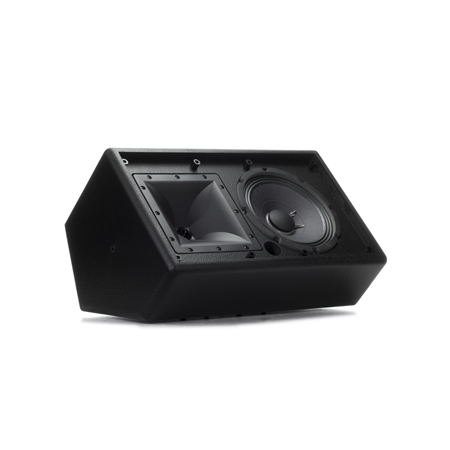

COMPONENTS: | One K-81-ST 8" woofer One K-103-TI-KP-1" titanium compression driver on a K-802-M horn |
CROSSOVER FREQUENCY: | 2kHz |
ENCLOSURE MATERIAL: | 3/4" MDF |

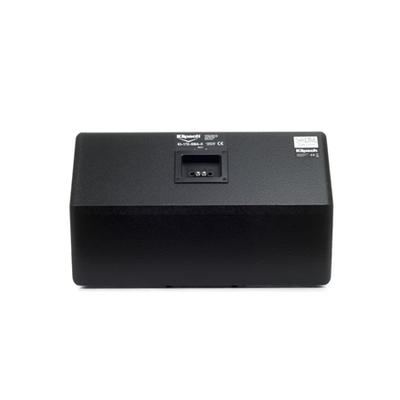

INPUT CONNECTIONS: | Two point barrier strip |
COVERAGE: | Horizontal 90° +/-30 2.5kHz-20kHz Vertical 90° +/-20 2.1kHz-20kHz |
DIRECTIVITY INDEX (DI): | 8dB+/-3dB 1kHz-20kHz |
DIRECTIVITY FACTOR (Q): | 6.3 |
HEIGHT: | 11.4" (28.96 cm) |
WIDTH: | 18.9" (48.00cm) |
DEPTH: | 10.6" (26.92cm) |
WEIGHT: | 27 lbs. (12.24kg) |
MOUNTING OPTIONS: | 4 - 1/4" -20 screw pattern for Mounting Bracket 2 - 1/4"-20 screw pattern for SB-102 Bracket |
FINISHES: | Black, White and Raw |
ACCESSORIES: | SB-102 Mounting Bracket |
OVERLOAD PROTECTION: | KLIP Overload Protection Circuit-HF |
