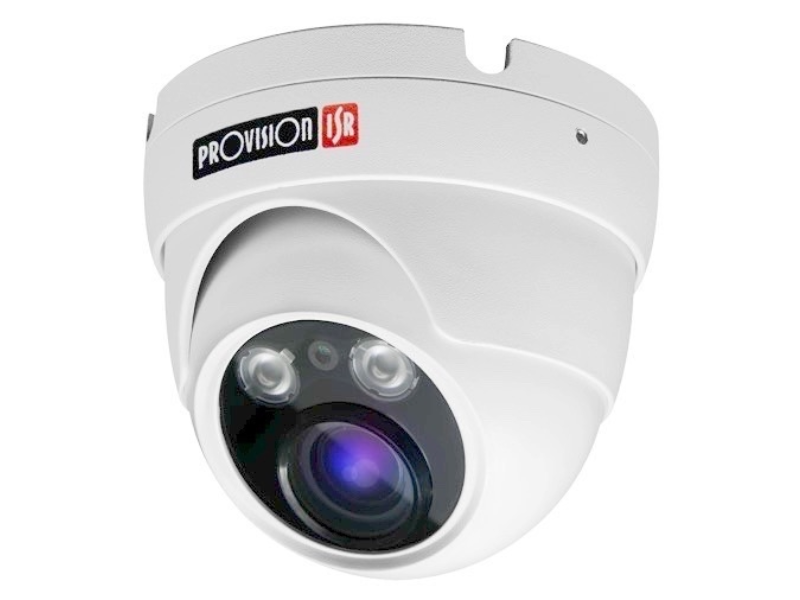

Provision ISR H.265 Dome IR 25M 3.3-12mm 30 LED's 5MP with POE Motorized - PV-DI-250IP5MVF
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
McNain TV and Electronics offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
25 IR Motorized Vari-Focal Lens Dome
- 5MP IP Camera
- Eye-Sight H.265 Series
- Real-time, 30fps
- 3.3-12mm Motorized VF Lens with Auto-Focus
Features
- 1/2.5" CMOS Sensor
- 5 Mega-Pixel - 2592 x 1944
- Pro Analytics
- H.265 Compression (H.264 Compatible)
- True Day & Night (IR Cut Removable)
- 0 Lux (IR On) Min. Illumination
- ONVIF
- True WDR / BLC / HLC
- 3D Noise Reduction
- Motion Detection and Privacy Masking
- 3.3-12mm Motorized Lens with Auto-Focus
- 25m IR Illumination
- PoE Support
- 1 Way Audio
| Specifications | |
|---|---|
| Model | DI-250IP5MVF |
| Image Sensor | 1/2.5" CMOS (4:3) |
| Effective Pixels | 2592x1944 |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Frame Rate | 1-25/30 (With True-WDR) |
| Day & Night | ICR |
| Min. Illumination | Day: 0.036lux / Night: 0.009lux (@F2.0, AGC On) 0lux with IR on |
| Audio compression | G.711A/G.711U |
| Communication | One-way Audio |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | True WDR (120dB, HFR* Disabled) / BLC / HLC / ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Motion Detection | Yes |
| Analytics | Camera Tampering, Line Crossing, Sterile Area, Object Monitoring, People Gathering/Intrusion/Counting, Smart Search, Face Detection |
| Video Compression | H.265 / H.264 / MJPEG* |
| Resolution | 5MP(2592x1944), 4MP(2560x1440), 1080P, 720P, D1, CIF, 480x240 |
| Multi-Stream | 5MP / 4MP / 1920x1080 / 1280x720 / D1 / CIF / 480x240 (1~25/30FPS) |
| Bit rate | 64Kbps ~ 8Mbps@H.265 / 128Kbps ~ 10Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| IR Distance | 25m (2 High Power IR LED) |
| Lens (Field of View) | 3.3-12mm Motorized with Auto-Focus (98°-36°) |
| Iris | Fixed Iris |
| Lens Mount | Φ14 mount |
| Protection Rate | Water Proof: IP66 |
| Bracket | 3-Axis Wall Bracket |

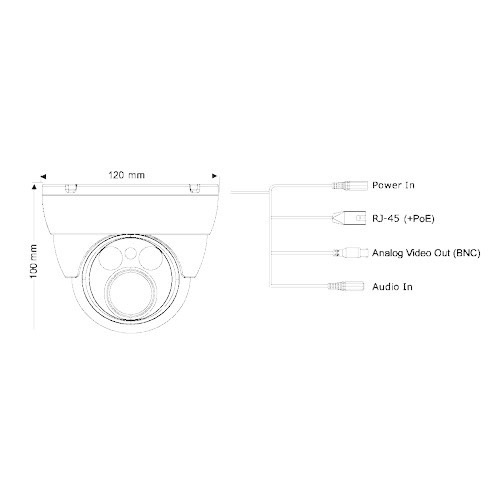

| Dimensions | Φ120mm×100mm |
| Weight (gross) | 400g |
| Network | RJ45 (+PoE) |
| Power | DC Socket |
| Analog Video Output | CVBS (BNC) |
| Audio Connectivity | 1Ch Input |
| SD Card | No |
| RS485 | No |
| Alarm | No |
| Remote Monitoring | IE Browsing, CMS Software, Provision Cam2 Mobile App |
| User Access | Supports simultaneous monitoring for up to 4 users with multi-stream real time transmission |
| Network Protocol | TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP |
| ONVIF | Yes |
| Ethernet | 100Mbps |
| PoE | Yes |
| Power Supply | DC12V/~280mA / PoE/~4W |
| Work Environment | -30°C~50°C, 10%~90% Humidity |
