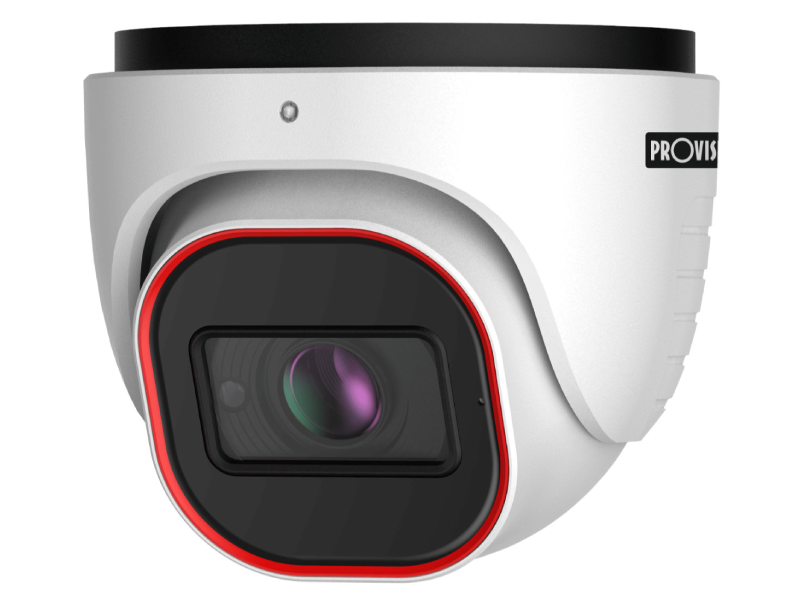

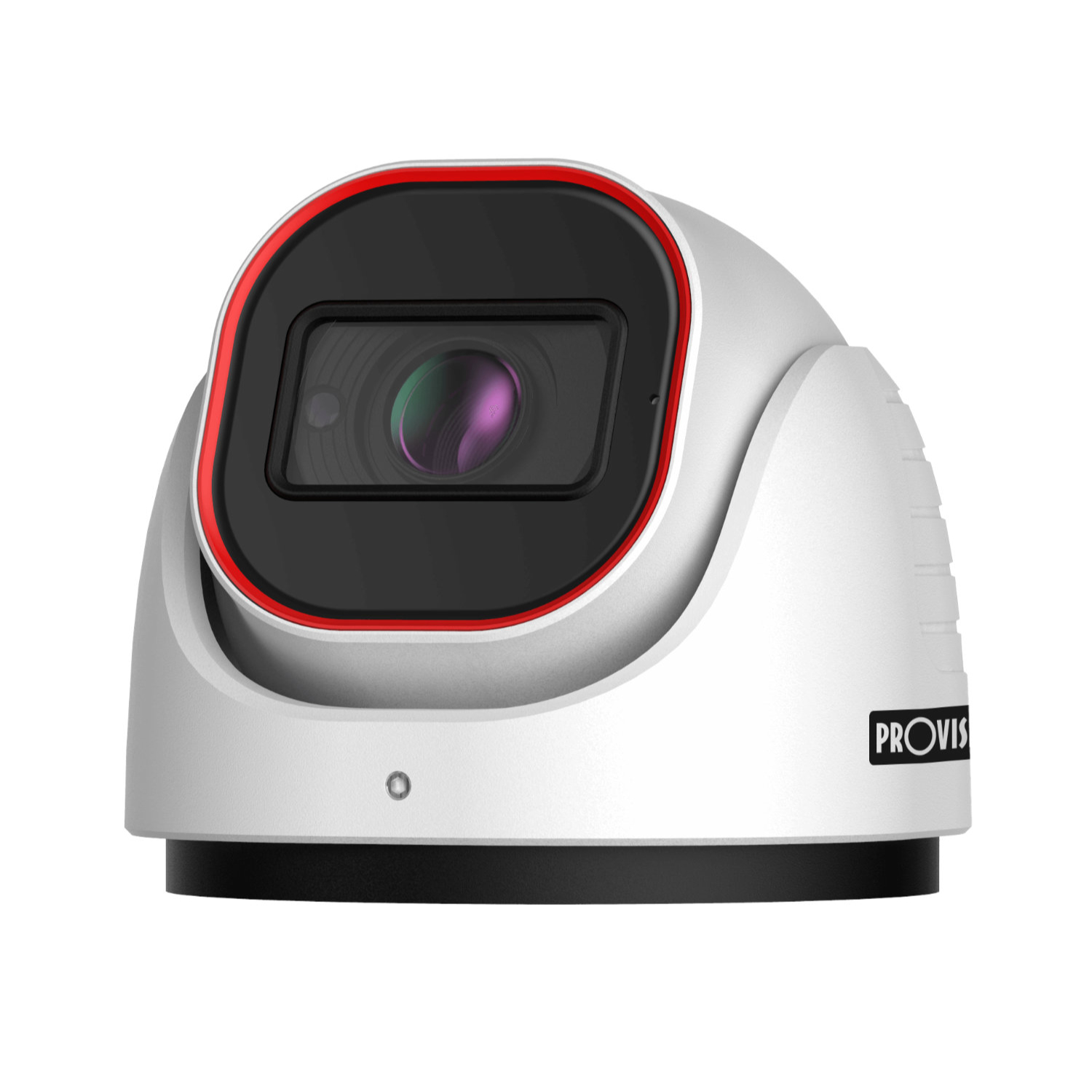

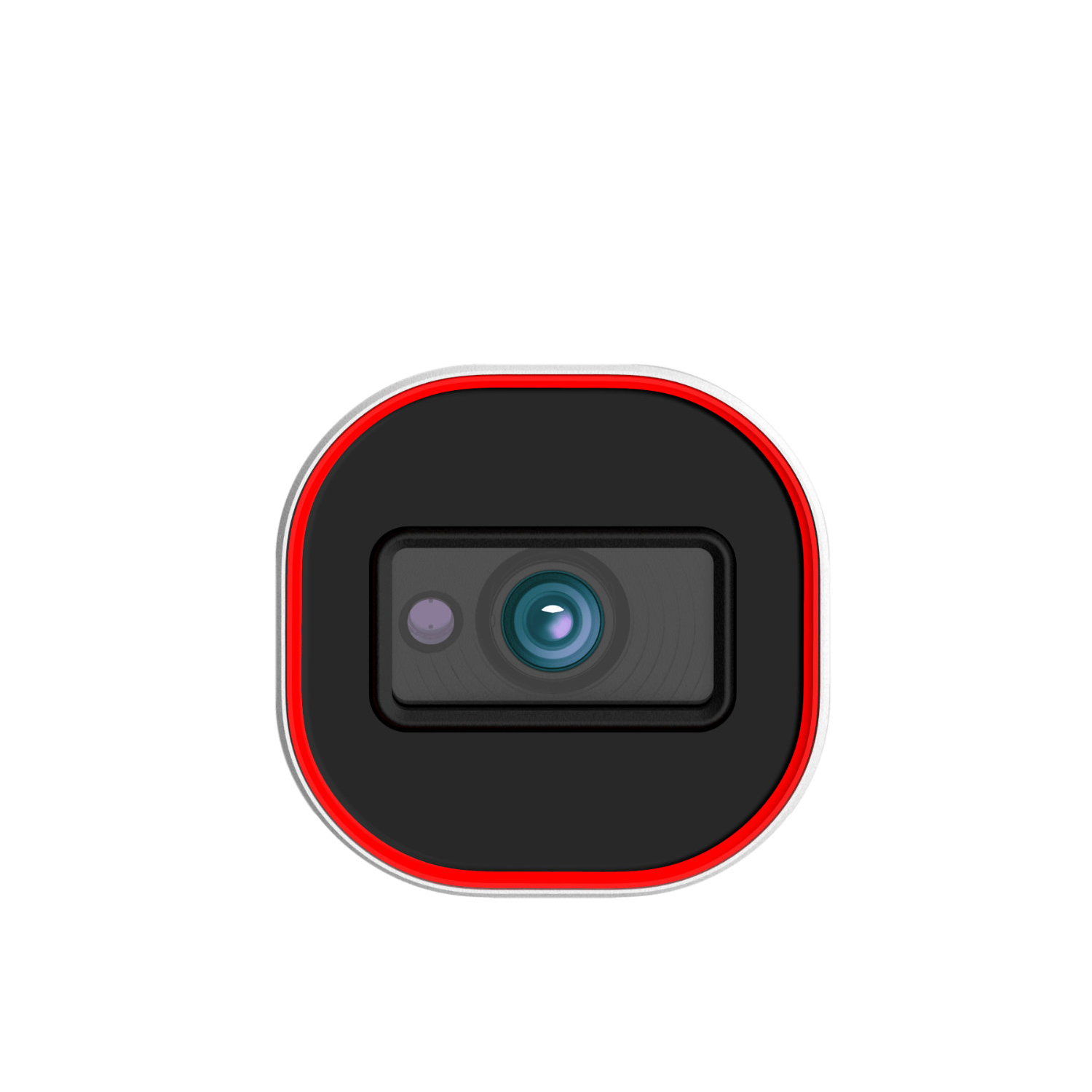

Provision ISR 8MP Turret S-Sight IP MVF 2.8-12mm Lens with 40M IR Camera in White - PV-DI-380IPSN-MVF-V3

Authorized Dealer Price Match Guarantee
Price Match Guarantee
McNain TV and Electronics offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

40m IR 8MP Motorized Vari-Focal Lens Dome/Turret Camera With Built-in Check Point Protection

Equipped with a 2.8-12mm motorized lens, this 8MP Dome/Turret camera is designed for medium-distance surveillance (up to 40m) in indoor and outdoor scenarios. With its excellent performance, reliability, and affordable price, the DI-380IPSN-MVF-V3 camera is the perfect solution for any basic installation. In addition, Check Point protection ensures that your devices are cyber-protected round the clock.

Features

  • 1/2.8" CMOS (16:9)
  • Resolution: 3840x2160/20FPS (8MP)
  • Lens: 2.8-12mm MVF with Auto Focus (102° - 32.1°)
  • True Day & Night – ICR
  • IR Range: 40m (3 High-Power IR LED)
  • H.265+/H.264+/H.265/H.264 Compression
  • General Analytics: Camera Tampering
  • Standard Analytics: Line Crossing, Sterile Area
  • True WDR, BLC, HLC, ROI Support
  • PoE
  • SD Card Support (Up to 256B)
  • Built-in Microphone + Audio Input
  • ONVIF
  • IP67
  • Weight: ~640g
  • Power: DC12V/~900mA / PoE/~10W
Specifications
Image Sensor1/2.8" CMOS (16:9)
Effective Pixels3840x2160
Electronic Shutter1s ~ 1/100000s
Frame Rate8MP @ 1-20FPS, 6MP @ 1-25/30FPS, 5MP @ 1-25/30FPS, 4MP @ 1-25/30FPS, 2MP 1-25/30FPS
Day & NightICR
Min. Illumination0.02 lux (@F1.6, AGC on) 0 lux with IR on
Audio compressionG.711A/G.711U
CommunicationOne-way Audio
Image SettingsAWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image EnhancementTrue WDR, BLC, HLC, ROI
Noise Reduction3D-DNR
Image OrientationMirror/Flip
Privacy ZoneYes
Motion DetectionYes
AnalyticsGeneral Analytics: Camera Tampering, Standard Analytics: Line Crossing, Sterile Area
Video CompressionH.265+/H.264+/H.265/H.264, MJPEG*
Resolution8MP / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF
Multi-StreamMaster Stream: 8MP(3840x2160) / 6MP(3072x2048) / 5MP(2592x1944) / 4MP(2560x1440) / 2MP(1920x1080), Sub-Stream: 2MP/1MP/D1/CIF/QCIF, Third Stream: 1MP/D1/CIF/QCIF (1~30fps)
Bit rate64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode ModeVBR/CBR
Image QualityFive levels under VBR; Free adjustment under CBR
IR Distance40m (3 High Power IR LED)
Lens (Field of View)2.8-12mm MVF with Auto Focus (102°- 32.1°)
IrisFixed Iris (@F1.6)
Lens MountØ14 Mount
Protection RateWater Proof: IP67
Bracket3-Axis Bracket
DimensionsØ113mm×99.6mm
Weight (gross)~640g
NetworkRJ45 (+PoE)
PowerDC Socket
Analog Video OutputNo
Audio ConnectivityBuilt-In Microphone + Audio Input
SD CardEvent/Schedule based Main/Sub-Stream recording (Up to 256Gb)
Hard Reset ButtonYes
AlarmNo
Remote MonitoringIE Browsing, VMS Software, Provision Cam2 Mobile App
User AccessSupports simultaneous monitoring for up to 10 users with multi-stream real time transmission
Network ProtocolIPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS
ONVIFYes
Ethernet100Mbps
PoEYes
Power SupplyDC12V/~900mA / PoE/~10W
Work Environment-30°C~60°C, 10%~90% Humidity
Junction BoxPR-JB14IP66 - PR-JB14IP64 - PR-WB-A
Notes* Substream only
