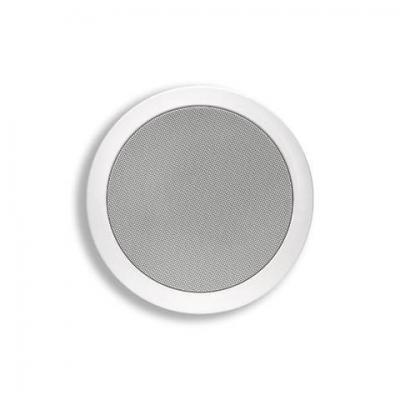

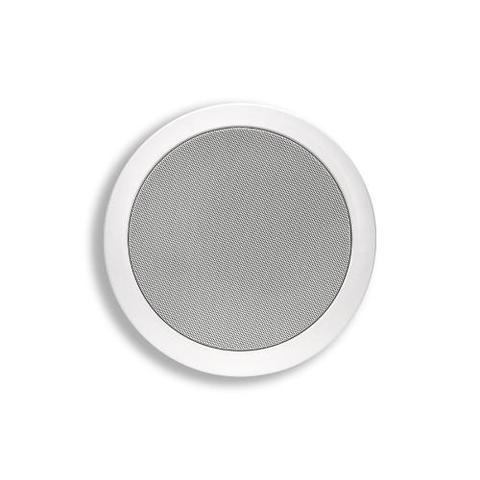

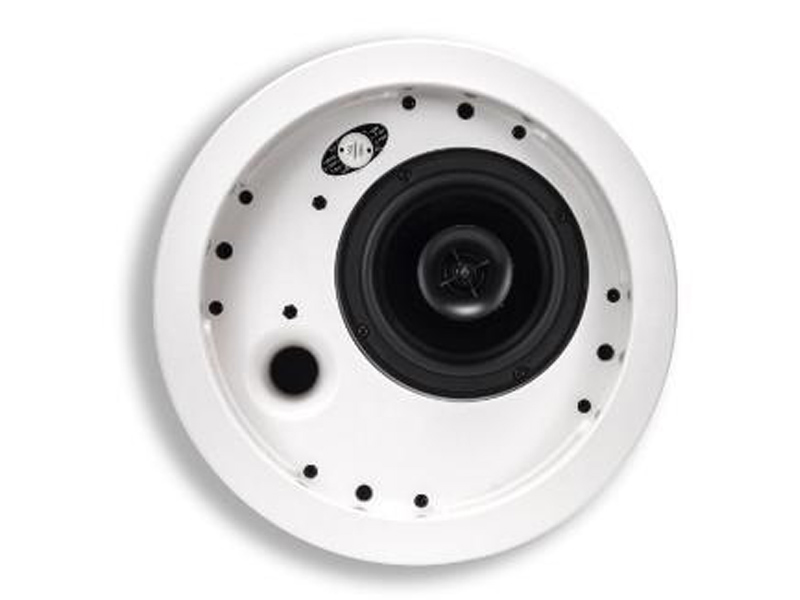

Klipsch Commercial In-Ceiling Speaker IC500TSCW
IC-500-T-SC
At just over 4” deep, the all-new IC-500-T-SC packs proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and UL-1480 certified in-ceiling loudspeaker with an integrated back can and multi-tap transformer.
- Shallow 4.125” depth
- Includes 15 watt 70/100 volt multitap transformer
- 70V, 100V, or 8 ohm operation selectable via front baffle switch.
- Tractrix port design for deep bass with less compression
- Tractrix horn tweeter for smooth on and off axis performance
- Designed to mix and match with Klipsch CA speakers
- Includes grille, backcan, tile-bridge, and cut-out template for easy installation
Specifications | |
---|---|
FREQUENCY RESPONSE | 1 (+/- 4 dB) 95 Hz - 20 kHz |
POWER HANDLING | 2 50 watts (14.5V), 200 watts peak |
MAXIMUM SPL | 3 101 dB Continuous, 107 dB Peak |
SENSITIVITY | 4 87 dB |
COVERAGE ANGLE | 80º |
DIRECTIVITY INDEX (DI) | 8 dB |
DIRECTIVITY FACTOR (Q) | 6.3 |
NOMINAL IMPEDANCE(IN 8 OHM BYPASS MODE) | 8 ohms, 4.2 ohm minimum |
COMPONENTS | One 5" (12.7cm) woofer, 1” (2.54cm) Titanium diaphragm, compression driver |
INPUT CONNECTION | Terminal Strip |
TAP SETTINGS | 70V: 15w, 7.5w, 3.8w, 1.9w, 100V: 15w, 7.5w, 3.8w |
ENCLOSURE TYPE | Bass-reflex via Tractrix port |
SAFETY AGENCY RATING | UL-1480, UL-2043 |
WIRE GAUGE ACCOMMODATED | 14 AWG |
CUTOUT DIMENSIONS | 9.125” (23.2cm) diameter |
MOUNTING DEPTH | 4.125” (10.5cm) |
OVERALL DEPTH | 4.375” (11.1cm) |
OVERALL WIDTH | 10.75” (27.3cm) diameter |
THRU HOLE WIDTH | 9” (22.8cm) |
WEIGHT | 5.5 lbs. (2.5kg) |
FINISHES | White/Paintable |
ACCESSORIES | Mud Ring Kit (PN: 1010413) |
